VisionPass SP

Advanced facial recognition access control device

About VisionPass SP

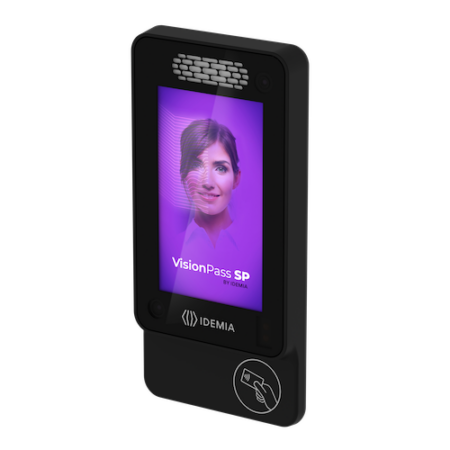

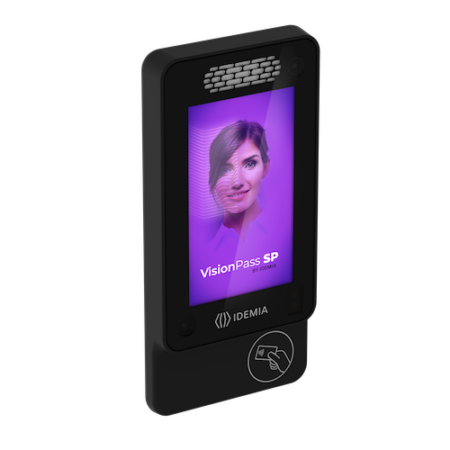

The VisionPass SP, developed by IDEMIA, is an advanced facial recognition access control device.
It features a multi-core 1.8 GHz CPU with a neural processing unit and a 5-inch WVGA color capacitive touchscreen.

The device is equipped with dual 2 MP cameras for visible and infrared facial acquisition, supported by 3D stereovision technology. It includes white and infrared LED illumination and a 60 GHz radar proximity sensor.

The VisionPass SP offers rapid and accurate facial recognition and is designed to be energy-efficient and eco-friendly, with a robust IP65-rated construction, making it suitable for various indoor and outdoor environments.

The VisionPass SP stands out for its enhanced security features, including Ibeta level 1 fake face detection and advanced cybersecurity measures like secure booting, AES-256 data encryption, and TLS 1.2 communication encryption. This makes it a highly secure solution for sensitive environments.

In terms of user experience, the device is designed for ease of use with features like QR code scanning capability and support for multiple credential types. Its adaptable design and user-friendly interface make it suitable for a wide range of applications, from corporate settings to high-security areas. The VisionPass SP is a testament to IDEMIA’s commitment to combining cutting-edge technology with practical, user-centric design.

Download VisionPass SP brochure

VisionPass SP vs VisionPass

Feature	VisionPass SP	VisionPass
Size	More compact	Larger
Screen	5″ Touchscreen	7″ Touchscreen
Facial Recognition Algorithm	RGB Face V3 Algorithm	Face V2 Algorithm
False Face Detection	Ibeta level 1	Ibeta level 2
Database	Designed for 50K 1:N	Larger capacity
Identifier Options	Includes QR Code	Supports HID Mobile Credential
Energy Consumption	More energy-efficient	Higher energy consumption
Cybersecurity	Advanced functions	Standard functions
Installation	Easy to install, suitable for various environments	Ideal for high-end installations
Adaptability	Excellent adaptability to different business environments	Designed for larger spaces and lobbies
Technology	Integrates the latest advances in facial recognition	Uses proven and reliable technology
Energy Efficiency	Optimized energy consumption for efficiency	Energy consumption suited for continuous use

Description

The VisionPass SP by IDEMIA is a state-of-the-art solution in biometric security, featuring several key benefits:

Advanced Technology: Uses a mix of 2D/3D and infrared cameras for precise and reliable facial recognition.
Robustness and Reliability: IP65 rated, making it suitable for various environments, including outdoor use.
Extended Compatibility: Easily integrates with numerous access control systems and can read QR Codes.
Eco-Responsibility: Its energy-efficient mode reduces power consumption, aligning security with sustainability.

These features make VisionPass SP an ideal choice for businesses seeking an effective and environmentally friendly biometric security solution.

Technical Features

Technical Specifications of VisionPass SP:

Feature	Specification
CPU	Multi-Core 1.8 GHz + NPU
Display	5-inch WVGA color capacitive touchscreen
Facial Acquisition	2 x 2 MP visible/IR, 3D stereovision
Lighting	White and infrared LEDs
Proximity Sensor	60 GHz radar
Sound	Buzzer
Facial Performance	Intention area 0.3 to 1.0 m (adjustable), Field of view (HxV): 55°x90°, User height from 1.2 to 2.0 m, Matching speed < 1s, Flow rate: 30 users/min, Active Presentation Attack Detection, Mask compatible
Contactless Reader Options	MIFARE/DESFire, HID iClass, SEOS, Supports PIN codes natively, QR code scanning capability
Internal Storage Capacity	16Gb Flash and 4Gb RAM, Up to 10,000 users in the database, 250,000 IDs in authorized user list, 1 million transaction logs
Security	Secure booting and authenticity check, Cryptographic technologies for sensitive data security, Data protection with AES-256 database encryption, Network communication encryption with TLS 1.2, Network authentication with 802.1.X, OSDP secure channel, Tamper switches
Network/Communication	Ethernet, RS485
Inputs/Outputs	Wiegand in and out, OSDP, door relay, three GPI (including door monitoring), three GPO
Power Supply	12 to 24 V DC (2.5 A min @12V), Power over Ethernet with PoE+ switches
Operating Conditions	Temperature: -10°C to 45°C (14°F to 113°F), Humidity: 10% to 80% (non-condensing)
Intrusion Protection	IP65
Dimensions and Weight	HxWxD: 21×10.2×3.5 cm (8.2”x4”x1.4”), Weight: 0.8 kg
EMC/Safety Standards	CE, CB, FCC
Compliance	RoHS, REACH, California Proposition 65, WEEE
Environmental Declaration	Available upon request
Manufacturing	Made in France
